PowerTraker™

The PT 810 is a rugged 19" rack mount or bench top power data logger that can continously record current for eight separate outlets.

Data is gathered remotely through the USB port, or optionally via Ethernet or RS-485.

Applications for the PT 810 include supporting R&D engineering lab projects, monitoring power in a production environment or intergration with control systems for industrial equipment.

The PT 810 PowerTraker is a member of a family of products that offer a wide range of features to allow you to monitor several power parameters, and to provide a means to control and record power to many loads.

Where available, the V-Lock style inlets and outlets are offered as a standard feature to provide a means to secure power cords from accidental disconnecting. V-Lock style inlets and outlets will also accept standard cord plugs.














Specifications.
  • Input Voltage 120VAC, 230VAC, single Ø 50/60 Hz
  • Input Amps 20A North America, 16A IEC max
  • Output Protection UL 1077 protector or fuse
  • Outlet Nominal Voltage equivalent to mains input voltage
  • IEC 320 Inlet
  • IEC 320 Outlets (alternate configurations available)
  • V-Lock Inlets and Outlets
  • Remote Relay Control of each Outlet
  • Rubber Feet or Rack Mount
  • 17" x 7" x 1.75"
  • Several interface types available:
    • USB (USB-B connector)
    • RS-485 (3-pin plug with screw-jacks)
    • Ethernet (RJ-45 connector)
  • 1% Accuracy Typical
  • GUI software available for download, windows
  • fully adjustable 19" rack brackets can be removed for desktop applications
  • Low/High current alarm settings
  • Low/High voltage alarm settings
  • 9-pin D-sub alarm output connector
  • CE mark Marking

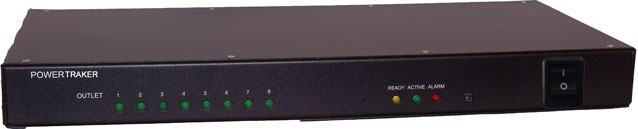

PowerTraker PT-810, front

PowerTraker PT-810, back

V-Lock Plug

CE mark
